Indoor Full Color LED Display with 2200cd/sqm Brightness and 2 Years Warranty for Stage Rental 256mm x 128mm

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	Kylit
Modelnummer:	P4

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	5

Contact

Gedetailleerde productomschrijving

Pixelveld:	4 mm	Modulegrootte:	256*128 mm
Fysieke dichtheid:	62500 punten/vierkante meter	pixelconfiguratie:	1R1G1B
LED -chip:	SMD2121	Module resolutie:	64*32
Modulemacht:	70W	Kijkhoek:	H: 120°; V:120°
Maximaal vermogen:	620W	Gemiddelde kracht:	25w
Kabinetsgrootte:	W512mm × H512mm	Gewicht:	7.8kg/paneel
Rijmethode:	1/16 scan, constante stroom	Videoframetarief:	≥60 Herz
Vernieuw tarief:	≥1200Hz
Markeren:	2200cd/sqm LED Display , 256mm x 128mm LED Video Wall , 2 Years Warranty Rental LED Screen

3-IN-1 SMD P4 Indoor Full Color LED Display for Stage Rental, 256mm × 128mm

High-performance indoor LED display solution designed for stage rental applications, featuring 3-in-1 SMD technology with excellent color reproduction and viewing angles.

Product Specifications

Item	PH4
Color	Full-color real pixels
Use environment	Indoor
Pixel pitch	4mm
Module size	256×128mm
Physical density	62500 dots/square meter
Pixel configuration	1R1G1B
LED chip	SMD2121
Module resolution	64×32
Module power	70w
Recommended viewing distance	4-10m
Best viewing angle	H: 120°; V: 120°
Maximum power consumption	620w
Average power consumption	25w
Cabinet size	W512mm × H512mm
Standard cabinet resolution	96×96
Weight	7.8kg/panel
Driving method	1/16 Scan, Constant Current
Video frame rate	≥60 Hz
Rate refresh	≥1200Hz
White balance brightness	≥1500cd
Operating temperature/Humidity	-30℃~+45℃
Ingress protection	Back: IP43
Input voltage	110-220V AC±10%
Gray scale/Color	Display Colors ≥16.7N (Synchronize)
Brightness control	Manual/Automatic
Input signal	RF, S-VIDEO, RGBHV, YUV, YC & COMPOSITION, etc
Control system	PCTV+DVI video card+control card+fiber
MBTF	>500 hours
Life time	>100,000 Hours
The rate	<0.0002

Product Images

Module Picture

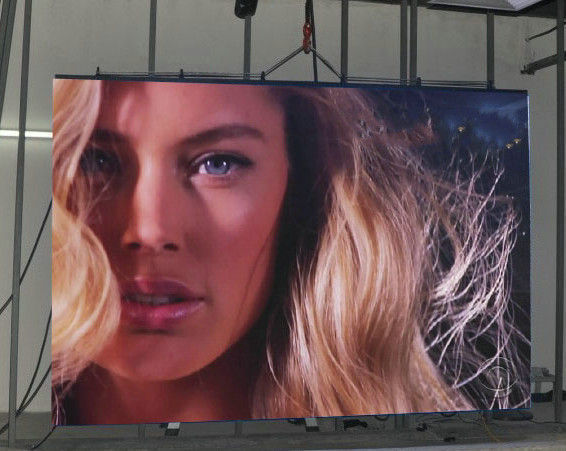

Cabinet Picture

Cabinet Connection Diagram

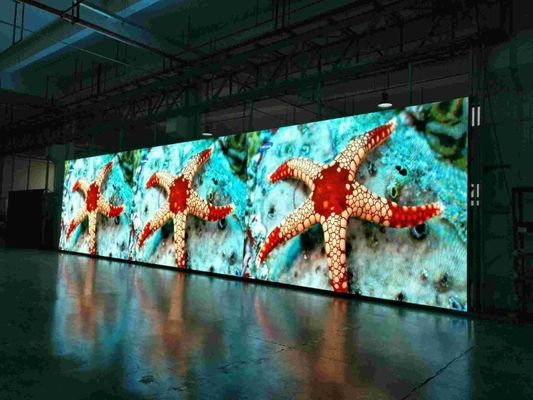

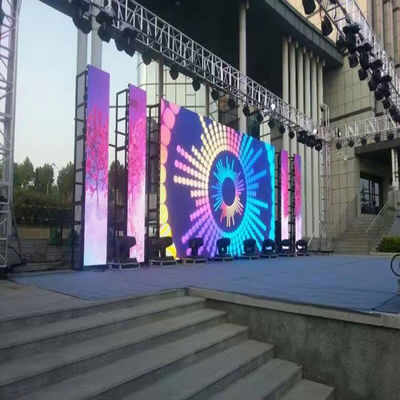

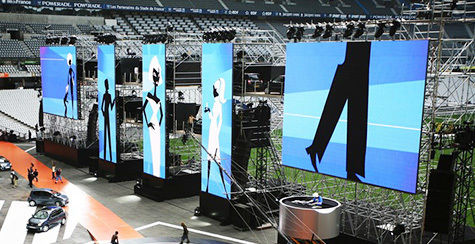

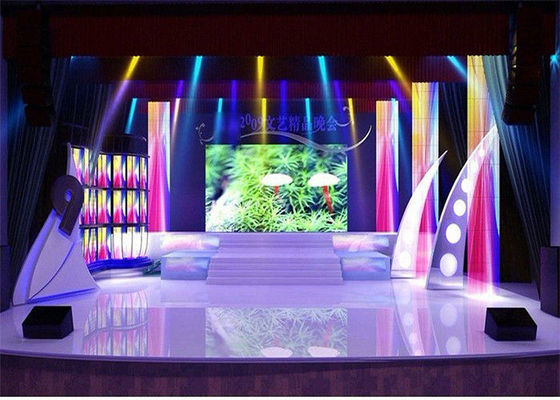

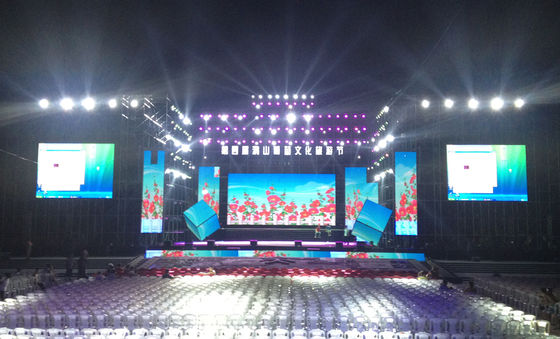

Project Case in Hotel

Packaging Picture

Key Advantages

High Quality: 24+ hours aging time, malfunction dot rate <0.0001, MTBF >10000 hours with high brightness and long lifespan
Perfect Display Effect: High brightness with easy-to-use control system for professional results
Competitive Pricing: Direct manufacturer pricing without middlemen for better value
Automated Production: Advanced equipment including Taiwan auto-encapsulate machines for consistent quality

Why Choose Our P4 LED Display?

Premium LED chips from CREE, SILAN, OPTO, EPISTAR ensuring brightness and durability
High production capacity of 50,000 pieces/month for faster delivery
Cost-effective pricing 10% below market average
Lightweight aluminum cabinet reduces freight costs and simplifies installation
Stable performance with rigorous 24+ hour aging tests
Supports multiple media formats including Flash, WAV/MIDI, and HD video
Responsive customer support within 24 hours
ODM/OEM services available
Wide product variety to meet different requirements

Frequently Asked Questions

Q1: What's the pixel pitch for Indoor Stage LED Display Screen?

A1: Available in P2.5, P3, P4, P5, P6, P8, and P10 configurations.

Q2: Where is it used for?

A2: Ideal for indoor & rental applications including stage backdrops, live shows, concerts, and events.

Q3: Can it play HD video?

A3: Yes, supports HD video playback with Novastar controlling system.

Q4: What's the controlling system?

A4: Standard system is Novastar, with optional support for Linsn and others.

Q5: How about the size of project?

A5: Custom solutions available - please provide your required dimensions (width × height) for a tailored proposal.
